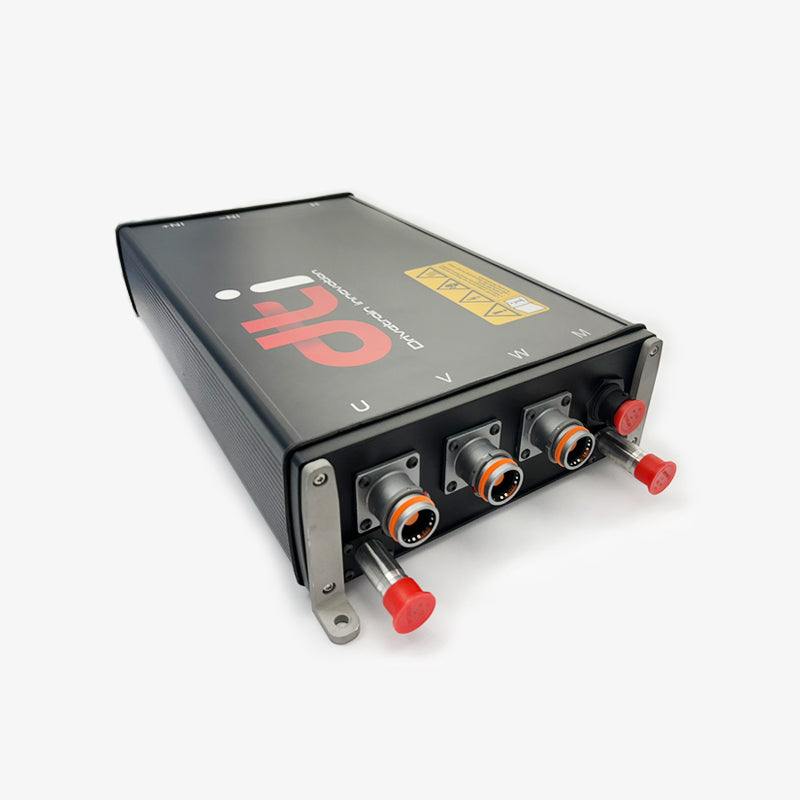

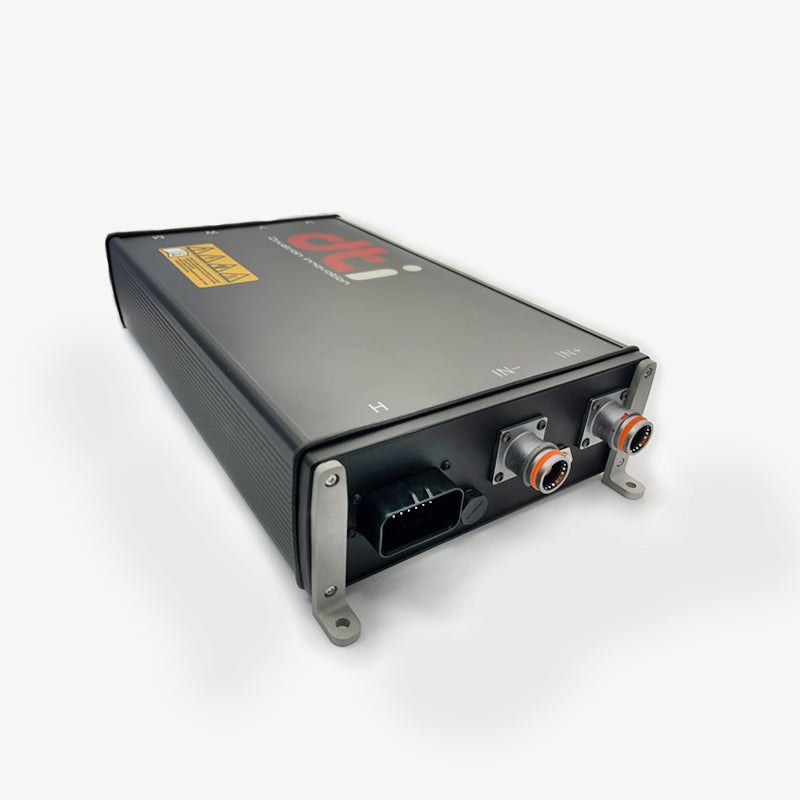

DTI HV-850 liquid cooled

The DTI HV-850 is a universal PMSM motor controller rated for up to 800Vdc battery voltage and 600 Arms current. The inverter introduces an easy-to configure lightweight solution for multiple use-cases, for example vehicles, watercraft, and battery-powered machines. Numerous limiting and protection features have been implemented for improved safety. The HV-550 is available with integrated liquid cooling. HV-850 inverter main specifications:

• Maximum AC current: 850 Apk (600 Arms)
• Input DC voltage: 30-800 Vdc
• Maximum output power: 320 Kw
• Maximum output AC frequency: 1,66 Khz
• Switching frequency: 8-14 Khz



Included items:

• DTI HV-850 liquid cooled inverter
• Grounding braid
• 2 pcs hose clamp
