Coroflex 35mm2 high voltage cable assembly

Coroflex 35mm2 high voltage cable assembly

€75,50 EUR
€75,50 EUR
Sale Sold out
Length (If you need a custom size, state it when ordering)
1. Connector type
2. Connector type

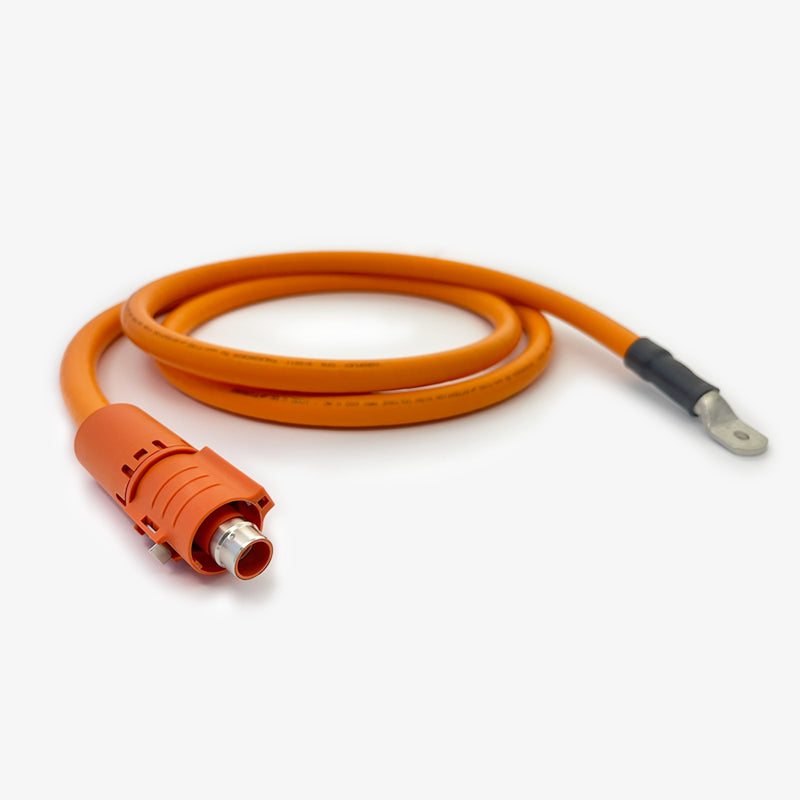

High-voltage cable assembled with connectors for AC and DC side. Coroflex 9-2611 FHLR2GCB2G 35 mm2 shielded high voltage cable for EV applications with optional cable connector ends. Coroflex 35 mm2 high voltage cable parameters:
  • Outer diameter: 14,4 mm
  • Colour: orange (RAL 2003)
  • Nominal voltage (AC /DC): max 600V / 1000 V
  • Weight: 485 g / m
  • Operating temperature: -40 C° - +180 C°
  • Sheath material: Silicon rubber
Connector types:

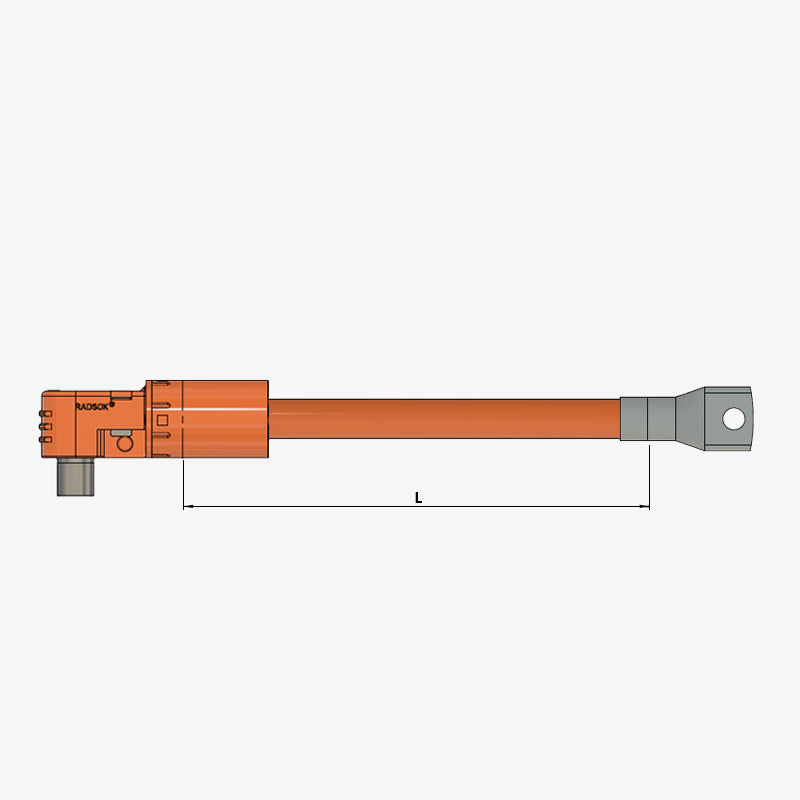

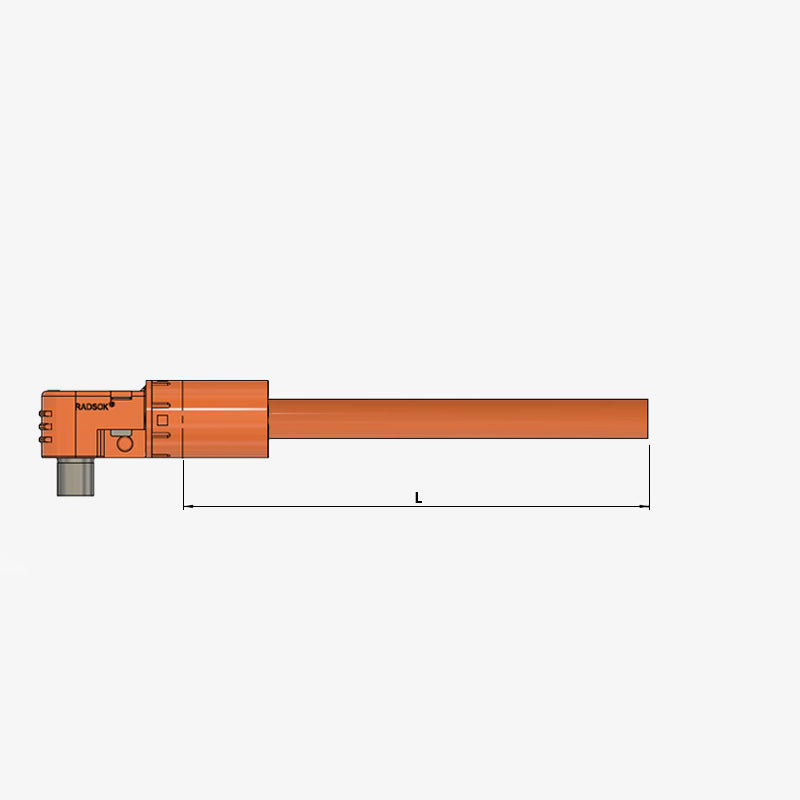

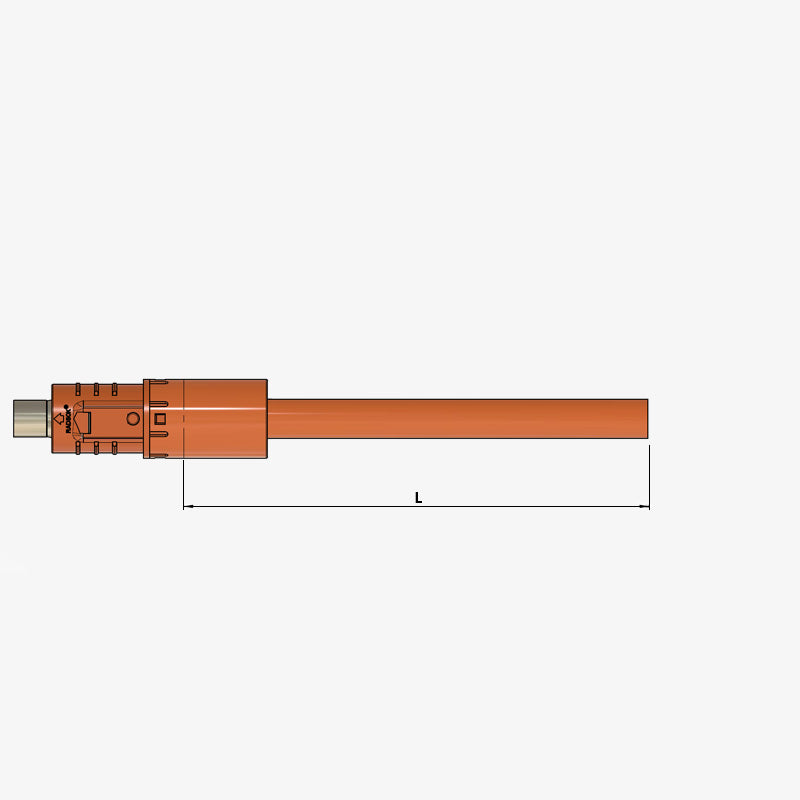

  • Amphenol Surlok high power connector - right angle, straight
  • M6 cable lug - WE 5580635
  • M8 cable lug - WE 5580835
